How to Replace a Moen 1225 Cartridge: A Homeowner’s Step-by-Step Guide [2026]
A dripping single-handle Moen faucet, a stiff handle that doesn’t want to turn, water that jumps from cold to hot with no warm range — these are the classic symptoms that point at the cartridge inside the valve. For most standard Moen one-handle faucets manufactured before 2009 (kitchen, lavatory, and standard shower, but NOT Posi-Temp or ExactTemp), moen 1225 cartridge replacement is the repair that brings the faucet back to life.
The cost math is favorable. The part runs about $25 to $35 at Home Depot, Lowe’s, or SupplyHouse. The job takes 30 to 60 minutes for a first-timer with the right tools. A plumber’s service call for the same moen 1225 cartridge replacement runs $150 to $350 according to Angi’s 2026 data, so the DIY savings are meaningful when the job goes cleanly.
This guide walks through the entire moen 1225 cartridge replacement procedure end-to-end: confirming the cartridge is actually the problem, identifying that your faucet really uses the 1225 (Moen has half a dozen single-handle cartridge models that look similar), the seven-step replacement procedure, and the three places homeowners most often get stuck.
Moen 1225 Cartridge Replacement: The 60-Second Diagnostic
Before starting any moen 1225 cartridge replacement work, confirm two things: that the problem is the cartridge, and that your faucet actually uses a 1225.
If water drips from the spout, tub spout, or showerhead when the handle is fully off, first check that the handle actually reaches its off position. A loose, stripped, or trim-blocked handle can mimic a cartridge failure. If the handle clicks cleanly to off and water still drips, the cartridge sealing surfaces are the leading suspect. Same for stiff handles: Moen explicitly notes in its FAQ that a hard-to-operate one-handle kitchen faucet using a 1225 should have the cartridge replaced.
If hot and cold mixing is erratic — water jumps from cold to hot with no warm range — the cartridge is plausible because the 1225 controls both volume and temperature. But if this is a shower and the handle only rotates rather than pulling out, double-check whether your valve is actually a 1222 Posi-Temp instead.
Two cases point elsewhere before you disassemble anything: water leaking from the base of a sink spout (typically a worn spout O-ring, not the cartridge) and weak flow with no drip and normal handle feel (almost always a clogged aerator or showerhead, fastest to rule out first).
The identification step is just as important. Moen warns that faucets manufactured after 2009 may use the newer 1255 cartridge instead of the 1225, even when the trim looks identical. The 1222 is the Posi-Temp pressure-balancing cartridge — a completely different platform, NOT a 1225 substitute. If your faucet is a standard one-handle kitchen, lavatory, or shower from the pre-2009 era and is NOT Posi-Temp or ExactTemp, the 1225 is your part. When in doubt, identify the faucet model first before buying any cartridge.
What the 1225 Actually Does
The Moen 1225 is a one-handle replacement cartridge for most standard Moen single-handle faucets — kitchen, lavatory, and standard shower valves. Inside the valve body, the 1225 is the moving part that does two jobs at once: it modulates how much water flows (volume), and it mixes hot and cold supply lines to the temperature your handle position selects. When the internal sealing surfaces wear out after a decade or two of use, the cartridge stops shutting off cleanly (the drip), stops moving freely (the stiff handle), or stops mixing predictably (the cold-to-hot jump).
Compatibility is the catch in any moen 1225 cartridge replacement. The 1225 fits many but not all Moen single-handle faucets. It excludes Posi-Temp (1222) and ExactTemp shower valves entirely. It may not fit post-2009 single-handle faucets that switched to the 1255. The visual difference between an installed 1225 and 1222 can be subtle from the trim side, which is why model-confirming via paperwork or Moen support is worth 60 seconds before ordering a $30 part.
Tools and Parts You’ll Need
The replacement cartridge for any moen 1225 cartridge replacement job: a genuine Moen 1225 or 1225B from Home Depot ($29.98), Lowe’s ($30.88), SupplyHouse, or Ferguson. The 1225 and 1225B are functionally the same part; “Moen Magnum” is a loose nickname you’ll see in older listings. Lean genuine Moen over aftermarket when the valve is old, because a bad fit means redoing the entire job — the labor risk dwarfs the few dollars saved.
The essential hand tools: Phillips screwdriver, a 7/64-inch or 3/32-inch hex wrench (Moen lists both; which one depends on your specific faucet model), needle-nose pliers for the retaining clip, adjustable pliers or wrench for the white plastic twisting cap that ships with the cartridge, a small flathead screwdriver or pick for the recessed clip slot, flashlight, and towels.
The optional savior tool: a cartridge puller. The Moen 104421 OEM puller runs about $26 at Home Depot. The Danco 86712 alternative runs about $14 and lists Moen 1200, 1222, and 1225 cartridges on the package. You may not need a puller — start with the included white plastic twisting cap and a straight pull. If the cartridge rotates but won’t move outward, the stem starts to deform under pliers, or the valve is from a hard-water area with visible mineral scale, the puller pays for itself the first time it saves you from breaking the cartridge inside the valve.
Total cost without a puller: about $30 for the cartridge before tax. With the Danco puller: $44 to $46. With the Moen puller: $56 to $58. Compare to $150 to $350 for the pro service call.
Moen 1225 Cartridge Replacement: Step-by-Step
Shut off water and relieve pressure
Every moen 1225 cartridge replacement starts here: turn off the supplies. For sink faucets, the shutoffs are typically under the cabinet — turn both hot and cold valves clockwise until they stop. For showers, you’ll usually need the home’s main shutoff unless your shower valve has integral stops behind the trim plate. After shutting off, open the faucet handle fully and confirm that no water flows. This relieves residual pressure and verifies the shutoffs actually worked.
Remove the handle and trim
Handle removal is model-specific. Some Moen handles expose a Phillips screw under a decorative cap (pop the cap off with a flathead screwdriver, unscrew the handle screw, lift the handle off). Others use a hex set screw at the front or base — that’s where the 7/64-inch or 3/32-inch hex wrench comes in. After the handle is off, remove only the trim pieces required for your specific faucet: handle adapter, stop tube, washer, limit stop, pivot retainer, collar, or dome. The 1225 sits in the valve body underneath all of that.

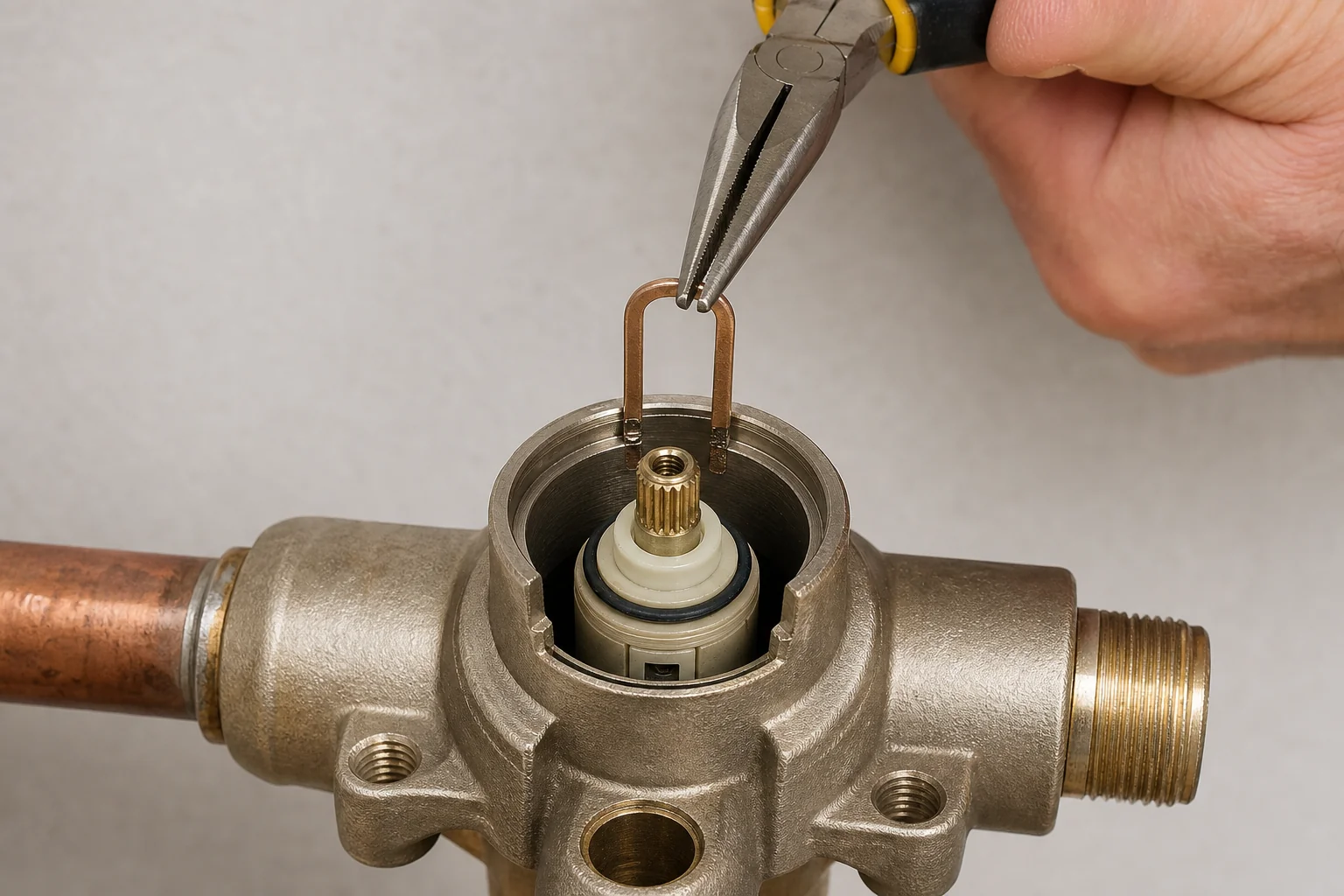

Remove the U-clip (CRITICAL — don’t lose it)
The copper U-shaped clip is the mechanical lock that holds the cartridge in place under water pressure. If you skip this step and try to pull the cartridge, you’ll break something. In standard shower valves, the clip is visible at the top of the valve body once trim is removed. In kitchen and lavatory faucets, the clip may be more recessed; Moen’s tutorial mentions using a paper clip or thin tool to grab it.
Slide a small flathead screwdriver or pick under the top tab of the clip and lift gently. Once it’s loose, grab with needle-nose pliers and pull straight out. Do NOT bend the clip’s two legs wider to “help” it clear the slot — it’s a spring-shaped retainer, not a cotter pin, and bending it ruins its grip.
Before pulling the clip, cover the tub drain or sink basin. Clips bounce, and a clip that goes down the drain becomes a separate problem. If the clip is kinked, cracked, or no longer slides cleanly into the grooves, replace it. Moen sells the OEM 96365 retainer clip for about $8 to $12.

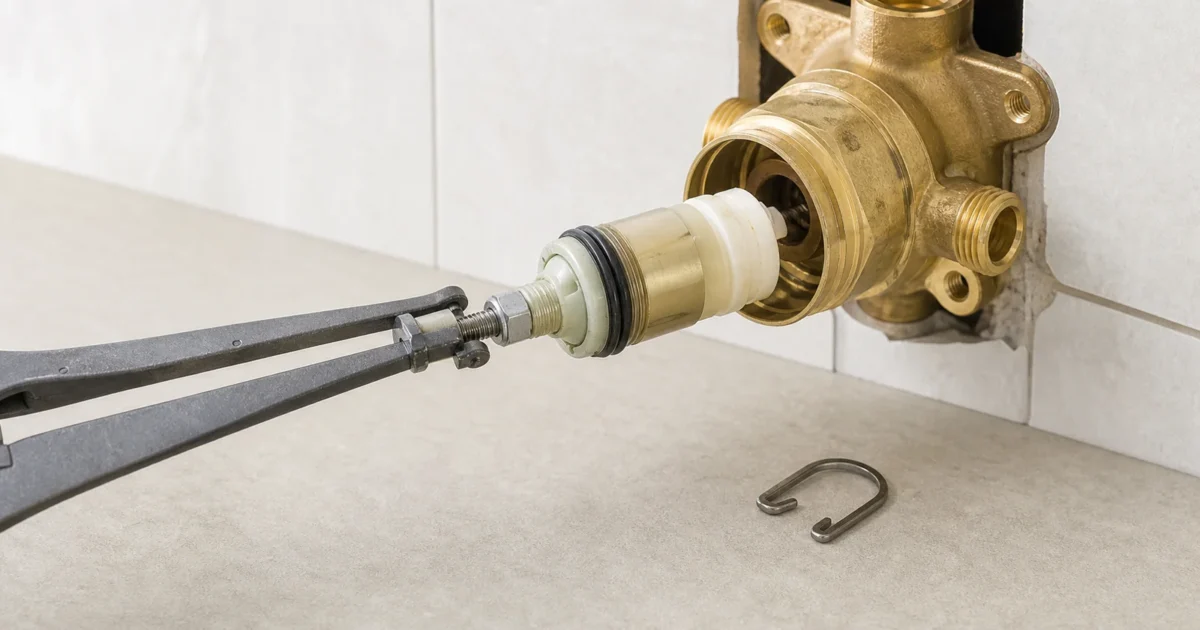

Pull the old cartridge
With the clip out, slip the white plastic twisting tool (included with the new cartridge) over the cartridge ears. Rotate one-quarter turn in each direction to break the cartridge loose. Then grasp the cartridge stem with pliers or an adjustable wrench and pull straight out. The cartridge should come out with steady pressure; if it doesn’t, this is when the puller earns its keep.

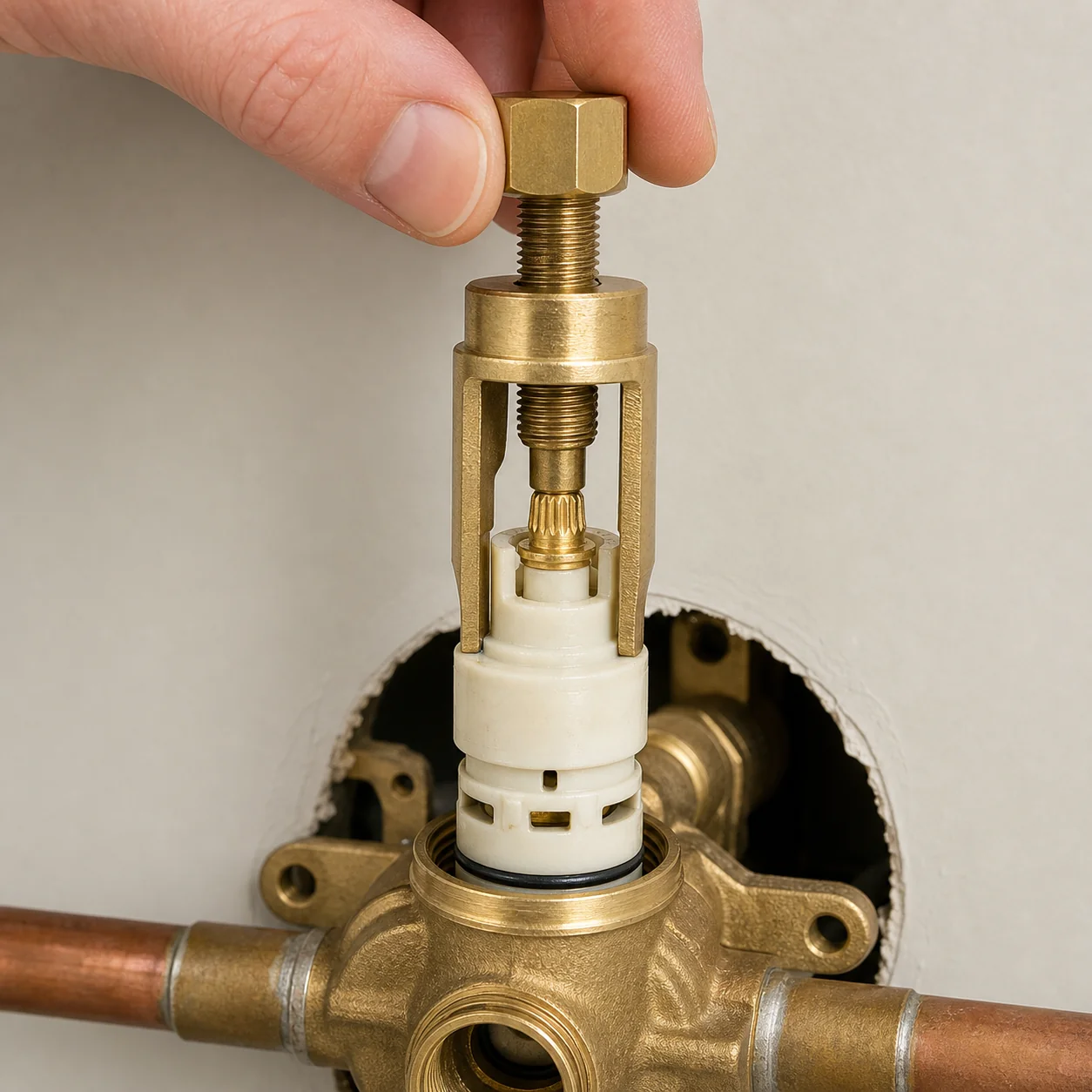

For stuck cartridges, attach the Moen 104421 or Danco 86712 puller per its instructions and crank slowly. If the puller can’t move it and the valve body starts to shift, stop — forcing a seized cartridge can damage the in-wall valve and turn a $30 repair into a $1,500 plumber job.
Clean the valve body
Skipping this cleanup is one of the most common moen 1225 cartridge replacement mistakes. Before installing the new cartridge, flush the valve and clean the inside with a soft nylon brush. Mineral buildup in the bore can damage the new cartridge’s seals, create gritty handle feel, reduce flow, or keep the cartridge from seating deeply enough for the retaining clip. Run water through briefly (open the home’s main shutoff partially, then close it) to flush debris out. Wipe down with a clean rag.
Install the new cartridge
Push the new 1225 straight into the valve. Align the cartridge ears with the retaining-clip notch — Moen describes correct alignment as the clear tabs filling the front and back center openings of the valve body, or the 12:00 and 6:00 positions. The cartridge should seat fully without forcing. Reinstall the copper U-clip; it should slide in cleanly. If the clip hits resistance halfway, the cartridge isn’t fully aligned — pull it back out, check alignment, and reinstall before forcing anything.
Test before final reassembly
Testing is the close of every successful moen 1225 cartridge replacement. Temporarily reinstall enough handle hardware to operate the stem (just the handle adapter and handle is usually enough). Turn the water on slowly at the supply. Test off, cold, warm, hot, and back to off. Verify no leaks at the stem or trim area. If hot and cold come out reversed, see the next section. Once everything works correctly, reinstall trim pieces in reverse order and you’re done.
The U-Clip — Don’t Lose It, Don’t Bend It
The copper retaining clip is the moen 1225 cartridge replacement step that derails more DIY jobs than any other. Three rules:
Don’t drop it. Cover the drain before pulling. Hold a towel under the valve opening for showers; clear the deck for sinks.
Don’t bend it. Spring tension is what makes it hold. A clip you straightened or splayed open won’t grip the cartridge under pressure, and Moen says water can’t be turned back on until a working clip is in place.
Don’t substitute incorrectly. OEM Moen 96365 is the safe replacement. Aftermarket clips exist, but only use one if the package explicitly lists Moen 1200/1225 and the clip seats fully without force. Don’t reuse a cracked, kinked, or visibly worn clip — the few dollars saved aren’t worth a water-pressure failure inside your wall.
If the clip won’t slide back during reinstallation, the cartridge isn’t seated correctly. Pull it back out, verify the ears align with the notch, check for debris in the bore, and reinstall before forcing the clip.
Hot/Cold Reversal — The 180-Degree Fix
If hot and cold come out reversed after the moen 1225 cartridge replacement, the standard Moen correction is NOT to swap supply lines. It’s to rotate the cartridge stem 180 degrees.
Shut the water back off. Remove the handle (and any trim that interferes). Grab the cartridge stem with pliers and rotate it exactly 180 degrees. Reinstall the handle. Turn water back on and retest.
On sinks you CAN swap the hot and cold supply lines as an alternative, but the stem rotation is the cleaner fix and matches what Moen’s tutorial documents. On showers, swapping supply lines is impractical and usually violates the intended in-wall layout — stem rotation is the only real option.
When to Stop and Call a Plumber
Three situations during moen 1225 cartridge replacement warrant calling rather than pushing harder:
Seized cartridge that won’t move even with the U-clip out and a proper puller applied. Forcing this risks damaging the in-wall valve, which is a much bigger repair (potentially behind tile). Professional opinions vary on exactly when to stop — but consistent advice is: do not move the rough valve.
Broken stem inside the valve body. If the cartridge stem snaps during extraction, removing the remnant requires either specialty extraction tools or wall access. Stop and call.
Old hard-water-exposed valves with visible scale. These are the highest-risk extractions. The cartridge may come out cleanly; it may also bring chunks of the valve seat with it. If you’re not prepared for that escalation, hire it out.
What This Costs (Cartridge vs Pro)
DIY math for a moen 1225 cartridge replacement: about $30 for the cartridge, optionally $14 to $26 for a puller. Total cash outlay before tax: $30 to $58.
Professional service: Angi’s 2026 shower cartridge replacement data shows a range of $150 to $350, with labor making up most of the cost. HomeAdvisor cites plumber hourly rates of $45 to $150 with potential first-hour minimums or trip charges. Thumbtack puts U.S. plumber hourly rates at $81 to $148.
The DIY savings: roughly $120 to $320 versus the average pro range. Caveat: those savings assume the job goes cleanly. An old shower valve in a hard-water area can break, seize, or turn a simple cartridge swap into in-wall valve work — at which point the math flips.
The Moen warranty is the wild card. Moen’s lifetime limited warranty for original consumer purchasers covers the faucet against leaks/drips and provides replacement parts free of charge. Labor is excluded. Proof of purchase or original ownership may be required. The process: identify your faucet model, gather purchase/ownership info, photograph the symptom area, and call 1-800-BUY-MOEN. Free parts plus DIY labor is the cheapest path of all if you qualify.
Quick Reference: Symptom to First Check
Use this table to gut-check whether moen 1225 cartridge replacement is your right next step:
| Symptom | Likely cause | First check |
|---|---|---|
| Drips from spout when handle is fully off | Worn cartridge seals | Confirm handle reaches off; if yes, replace cartridge |
| Stiff or hard-to-operate handle | Cartridge wear or mineral buildup | Check faucet is 1225 (not 1255), then replace cartridge |
| Hot/cold jump with no warm range | Cartridge mixing surface worn | Replace cartridge |
| Hot/cold reversed after replacement | Stem orientation | Rotate stem 180 degrees, retest |
| Leak from base of sink spout | Worn spout O-ring (not cartridge) | Replace spout O-ring before pulling cartridge |
| Weak flow, no drip, normal handle | Clogged aerator or showerhead | Clean aerator first; rule out before cartridge work |
| Cartridge won’t pull even with puller | Seized or scale-locked | Stop, call plumber — don’t damage in-wall valve |
What to Do Next
If the moen 1225 cartridge replacement fixes your drip, your next read is the broader maintenance overview at the Pillar 1 hub — covers when other Moen cartridges need attention, plus diagnostic guides for Delta and Kohler.
If you’re not yet sure your faucet uses a 1225, start with How to Identify Faucet Brand and Model. It walks through identifying any faucet brand and model from visual cues + paperwork.
And if the problem turns out not to be the cartridge at all, Why Is My Faucet Leaking covers the six common causes including the non-cartridge paths that catch homeowners off guard.
Sources
- Moen 1200/1225 cartridge replacement tutorial (official)
- Moen cartridge replacement page
- Moen cartridge clip article
- Moen 1225 single-handle shower article
- Moen 1225 kitchen faucet article
- Moen 96365 retainer clips
- Moen 104421 cartridge puller
- Moen lifetime limited warranty
- Home Depot Moen 1225B
- Home Depot Moen 104421 puller
- Home Depot Danco 86712 puller
- Lowe’s Moen 1225
- SupplyHouse Moen 1225
- Ferguson Moen M1225
- Angi shower cartridge replacement cost
- This Old House faucet repair
Educational content only. Not a substitute for licensed professional advice. Local plumbing codes vary by jurisdiction. Use of any guidance from this guide is at your own risk.
