How to Identify Your Moen Shower Valve: Cartridge Family and Series [2026]

How to identify your Moen shower valve: homeowner inspecting Moen Posi-Temp shower handle and escutcheon trim to determine the correct 1222 or 1225 cartridge

How to Identify Your Moen Shower Valve: Cartridge Family and Series [2026]

Knowing how to identify your Moen shower valve before you buy any cartridge is the most important step in a Moen shower repair — and the brand makes it easier than you’d think once you know where to look. A Posi-Temp valve, a standard one-handle valve and an M-CORE valve take different cartridges: Moen gives the 1222 for Posi-Temp, the 1225 for its Standard valve, and the 1212 or 1213 for M-CORE, depending on the series. Order the wrong one and you’re waiting on a second delivery or making another hardware run while the shower stays out of service.

The identification breaks into a clear priority order: start with the paper trail (original box, instruction sheet, model number), then move to the handle’s physical behavior, then use Moen’s online tools, and — only as a last resort — remove the handle and read the cartridge directly.

Valve family Handle action Cartridge Notes
Posi-Temp Rotate only — no push/pull 1222 Most common Moen shower in homes since the 1990s
One-handle (non-Posi-Temp) Pull out, then rotate 1225 Older one-handle Moen configuration
M-CORE 2 Series: rotate only; 3 Series: rotate, and tilt up and down for volume 1212 (2 Series) or 1213 (3 Series) Per Moen’s M-Core valve guide
ExactTemp / U by Moen digital Wall controller Paired model numbers Requires both controller and valve model numbers

Matched your Moen valve family above? Confirm the cartridge number against your own valve before you buy — the 1222, 1225 and 1213 are not interchangeable:

As an Amazon Associate, plumbingbythebook earns from qualifying purchases. Links below are affiliate links — they cost you nothing extra.

Not sure which part you have? The faucet & valve finder narrows it to the exact part in a few questions.

This guide walks through four identification methods in order from easiest (no tools, no water shutoff) to last resort (handle removed, cartridge inspected). Use the first method that yields a confirmed part number and stop there.


The first check costs nothing. Scan the handle cap, handle face, escutcheon plate, showerhead, and tub spout for a visible Moen wordmark — spelled out as “Moen.” A legible Moen logo on any of those surfaces confirms the brand.

The logo confirms the brand but not the cartridge family. Moen sells trim, cartridges, and rough valves as separate components — a Moen-branded escutcheon does not tell you whether the behind-wall valve takes a 1222, 1225, or 1213. The trim collection and the valve cartridge are independent; a homeowner who bought new trim without replacing the valve body might have a current Moen handle on top of a 1990s cartridge. Treat the logo as the first clue, not the final answer.

If no Moen logo appears on any exposed surface — which happens with older trims, worn finishes, or builder-grade installations — the valve could still be Moen. Move to the model number trail before assuming it’s a different brand.


Method 1: Find the Model Number on the Box or Instruction Sheet

Moen’s own parts workflow starts here. Moen says to search moen.com by the model number and visit the page for your product to find a full list of replacement parts (Moen FAQs).

Look in two places:

The original packaging. Moen says its model numbers are typically located on the original packaging, instruction sheet or receipt (Moen FAQs). If the shower was recently installed or the box was kept, this is the fastest path.

The instruction sheet. When the box is gone, the instruction sheet or the receipt is the next place Moen names (Moen FAQs). Homeowners often fold the instruction sheet and leave it in the vanity, in the original product bag, or tucked behind the valve access panel if the home has one.

Once you have the model number, search for it on moen.com and visit the page for your product to find its full list of replacement parts. For help identifying a part, call Moen Customer Support at 1-800-BUY-MOEN (1-800-289-6636) (Moen FAQs).


Method 2: Read the Handle Action — Posi-Temp vs. One-Handle vs. M-CORE

If the paperwork is gone, the handle’s physical behavior is the fastest homeowner-level Moen clue — and it’s accurate for the two most common Moen shower configurations without removing anything.

Rotate only → Posi-Temp → 1222 cartridge. Try to pull the handle straight out from the wall. A Moen Posi-Temp shower handle does not pull out — it only rotates from cold to hot. Moen’s 1222 product page identifies it as a “Single-handle Replacement Cartridge, Posi-temp,” and the 1222 instruction sheet covers the hot/cold orientation, cartridge installation, and temperature-limit setting details specific to this cartridge family (Moen 1222, Moen 1222 instruction sheet).

Pull out, then rotate → likely 1225 family. An older Moen one-handle shower that allows a pull-out motion before rotating — where the handle comes toward you before you can turn it — typically points to the 1200/1225 cartridge family. Moen labels the 1225 as “Moen One-handle Replacement Cartridge,” and the 1200/1225 instruction sheet covers removal, reassembly, and hot/cold reversal for this valve family (Moen 1225, Moen 1200/1225 instruction sheet).

M-CORE trim or documentation → 1212 or 1213 cartridge. If the trim plate, packaging, or installation paperwork says “M-CORE,” Moen’s M-Core valve guide tells the two series apart by the handle: a 2 Series handle rotates only and takes the 1212 cartridge, while a 3 Series handle also tilts up and down to adjust the volume and takes the 1213. Moen describes M-CORE as a newer valve system designed for simpler installation with shower-system functionality and style flexibility (Moen 1213). The 1213 is not interchangeable with the 1222 or 1225 — do not substitute.

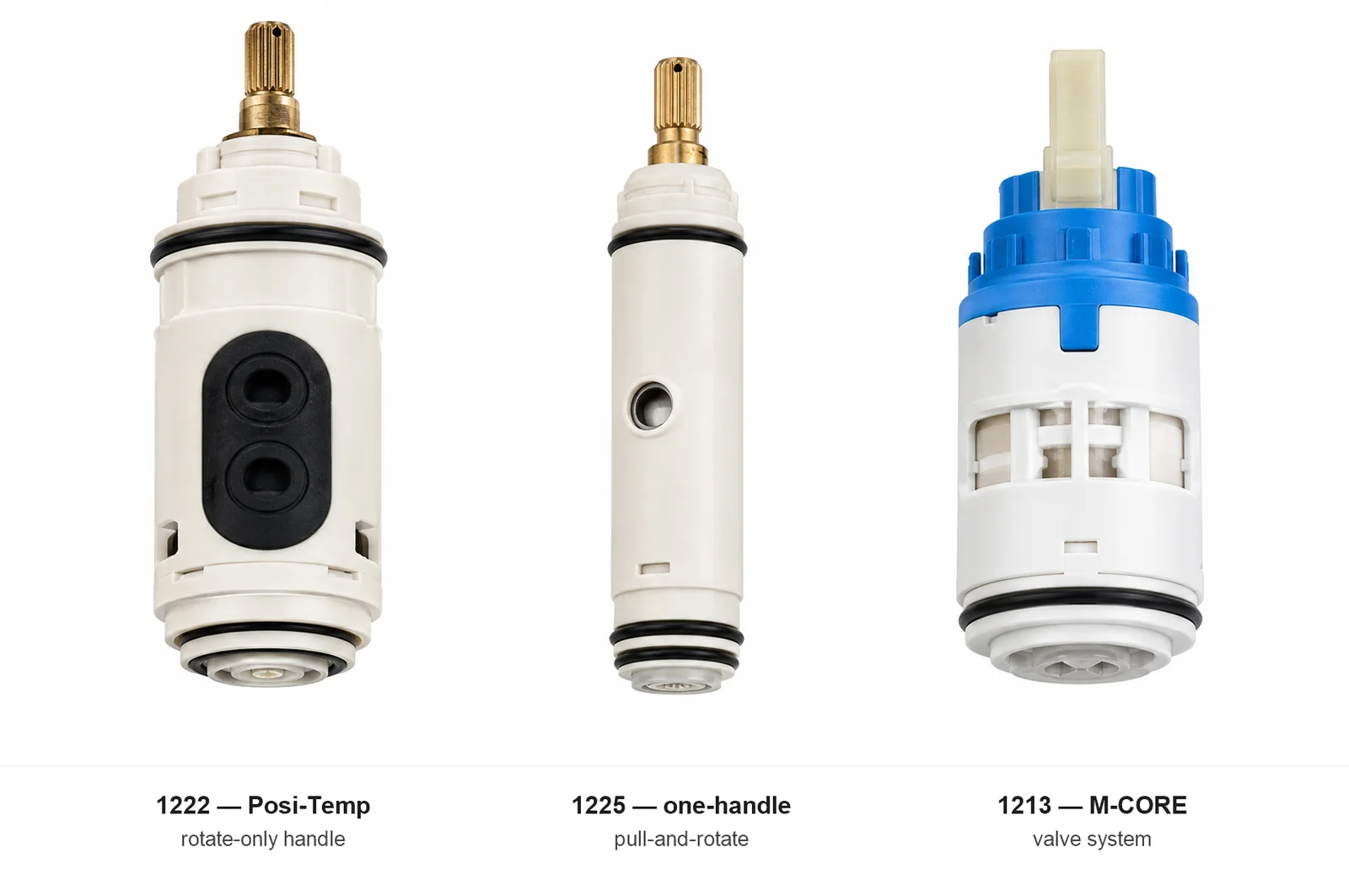

Three Moen shower cartridges side by side: 1222 Posi-Temp (left), 1225 one-handle (center), and 1213 M-CORE (right) — the three most common Moen shower cartridge families

AI-generated illustration, not a photo of the actual product.

Separate volume and temperature controls → different valve family. If the shower trim has two distinct controls — one for on/off volume and a separate one for temperature — this is likely Moen’s Thermostatic, ExactTemp, or U by Moen digital system, not a single-cartridge Posi-Temp or one-handle configuration. Moen’s U by Moen digital shower controller guide pairs controller model TS3302 with valve S3102 and controller TS3304 with valve S3104 — meaning both the controller model and the valve model matter for parts identification (U by Moen installation guide). Start with the trim paperwork or call Moen support with photos of the controller.


Method 3: Use Moen’s Online Lookup Tools

Once you have a model number — or a strong cartridge family hypothesis from the handle action — Moen’s online tools confirm the correct part before you spend anything.

A model-number search on moen.com. Search moen.com by the model number and visit the page for your product, which Moen says gives a full list of replacement parts (Moen FAQs). For a shower cartridge replacement, find the cartridge in that parts list — that part number is what to order.

The Moen Faucet Identifier. If you don’t have a model number, Moen’s photo-based Faucet Identifier helps find a faucet’s model number, installation instructions, product specs and replacement parts. It is built for faucets, so for a shower valve the photo set below and a call to Moen support are the surer path.

Coverage note. Showers from the 1980s or early 1990s may not turn up in a model-number search. The fallback is Moen Customer Support at 1-800-BUY-MOEN, which Moen says can help identify and purchase the part you need (Moen FAQs).

Before ordering anything, confirm your exact Moen cartridge part number with our free Repair Finder — it takes less than a minute and prevents a second hardware run.


Method 4: Remove the Handle and Read the Cartridge

If the above methods haven’t confirmed the cartridge family, removing the handle and reading the cartridge directly is the last resort. This step requires a water shutoff.

Turn off the water first — every time. Moen’s 1222 instruction sheet warns to turn off the water supply before removing the handle or disassembling the valve, and to open the faucet handle to relieve pressure before any further disassembly (Moen 1222 instruction sheet). The 1200/1225 instruction sheet gives the same warning (Moen 1200/1225 instruction sheet). An open valve under live pressure can push water into the wall cavity fast.

What to photograph before and after. Moen’s own parts process runs through the right product page and its list of replacement parts — which means you need a clear visual record (Moen FAQs). Before removing anything, photograph: the installed trim from the front, the escutcheon from the side, the handle set screw, the stem after trim removal, the cartridge face, the cartridge side, the retaining clip position, and any stamped marks on the valve body casting.

The retaining clip. Moen cartridges in the 1222 and 1225 families use a retaining clip — a small U-shaped or C-shaped clip — that holds the cartridge in the valve body. The clip must come out before the cartridge can be pulled. Moen’s 1222 and 1225 instruction sheets show the correct clip positions and hot/cold orientation for each cartridge; note the orientation in your photo before removal so you can reinstall the new cartridge correctly (Moen 1222 instruction sheet, Moen 1200/1225 instruction sheet).

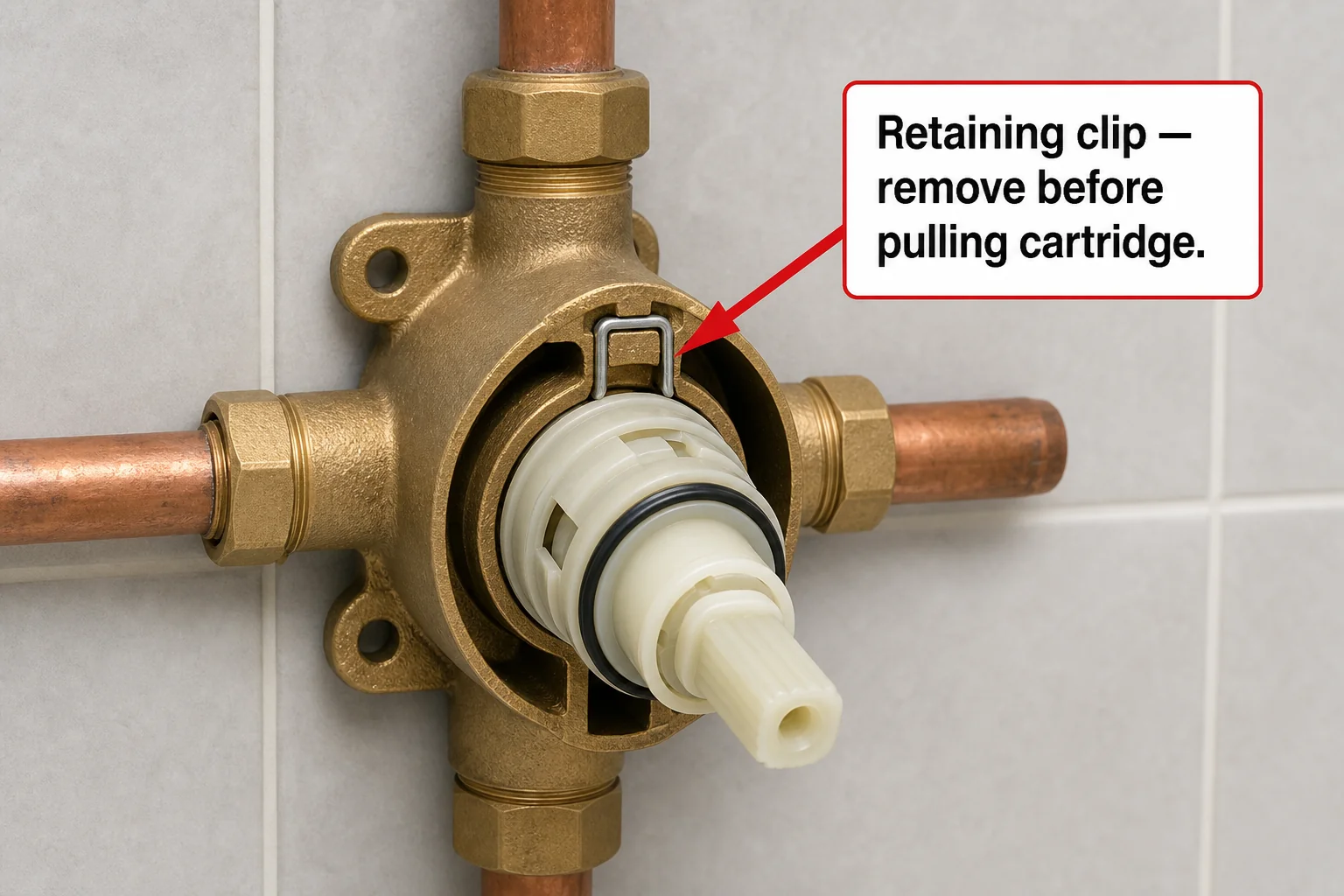

Moen 1222 Posi-Temp cartridge in valve body with retaining clip highlighted — the clip must be removed before the cartridge can be pulled

AI-generated illustration, not a photo of the actual product.

The 1222 and 1225 cartridge stems are different shapes — they are not interchangeable and the difference is visible when you hold them side by side. If you can photograph the removed cartridge next to the replacement candidate at the hardware store, that comparison is the most reliable cross-check.


How to Identify Your Moen Shower Valve: The Quick Decision Tree

Use this sequence to reach the correct cartridge without guessing:

  1. Have the original box or instruction sheet? → Find the model number → Search for it on moen.com → Use the product page’s list of replacement parts for the exact cartridge part number. Done.
  2. No paperwork, but have a Moen logo on the trim? → Test the handle action: – Rotate only (no pull-out) = Posi-Temp = 1222 cartridge – Pull out, then rotate = older one-handle = 1225 cartridge – Trim says “M-CORE” = 1212 cartridge if the handle rotates only (2 Series), 1213 if it also tilts up and down for volume (3 Series), per Moen’s M-Core valve guide
  3. Separate volume and temperature controls on the trim? → This is likely a thermostatic or digital system. Read the controller model and valve model from the documentation; call Moen support at 1-800-BUY-MOEN with both numbers.
  4. Online tools show no results? → Shower is likely pre-2011; call 1-800-BUY-MOEN with photos.
  5. Still unsure after all of the above? → Remove the handle (after water shutoff), photograph the cartridge, and bring the photos to a Moen-stocking plumbing supply or hardware store before buying.
  6. Can’t confidently identify the cartridge by any method? → A plumber visit for a visual ID is often less expensive than buying the wrong cartridge twice and waiting on shipping both times.

If you’re working on a Delta shower instead, our guide on how to identify your Delta shower valve covers the generation-based cartridge split (pre- and post-March 2006) that Delta showers use — a different identification logic from Moen’s handle-action approach.


What to Do When You Still Can’t Identify the Valve

If the logo, packaging, handle action, and online tools all fail, build a comprehensive photo package before calling anyone.

Photograph every accessible surface: the full shower wall, the handle from the front, the escutcheon from the side, the showerhead neck, the tub spout underside (if applicable), any visible logo or stamped mark, the handle set screw, the valve area after trim removal, the cartridge face, the cartridge side, the retaining clip, and any casting marks on the valve body. This is the same photo-first workflow Kohler’s support documentation recommends for its KOHLER Scout photo-identification path — and it works equally well when calling Moen support for legacy valve identification (Kohler Service Parts).

Call Moen Customer Support at 1-800-BUY-MOEN or send the photo set through Moen’s Contact Us page; Moen says its support team can help identify and purchase the part you need (Moen FAQs).

On universal and aftermarket cartridges. Moen sells genuine Moen replacement parts directly on moen.com, listed on each product’s page (Moen FAQs). Pfister similarly notes that warranty-covered product parts should go through manufacturer customer service before retail channels (Pfister Replacement Parts). A customer review on Delta’s RP19804 page also records a case where an aftermarket cartridge “would not fit” while the OEM Delta part fit correctly — an anecdotal caution that applies across brands (Delta RP19804). Buy OEM unless you can confirm the aftermarket part matches the exact stem profile of the cartridge you removed.


When to Call a Plumber

The identification process itself can require steps that go beyond what a casual homeowner should attempt alone — water shutoff, trim removal, cartridge extraction, and inspection behind the escutcheon. Moen’s own instruction sheets make this boundary clear: both the 1222 and 1225 sheets begin with explicit water-shutoff and pressure-relief steps before any disassembly (Moen 1222 instruction sheet, Moen 1200/1225 instruction sheet).

Call a plumber when:

  • You cannot locate or are unsure about the water shutoff for the shower circuit
  • The handle is corroded, seized, or the set screw is stripped and won’t back out
  • The cartridge retaining clip is inaccessible or the cartridge won’t move with hand pressure
  • You have a U by Moen, ExactTemp, or other digital system where the controller and valve model pairing is unclear
  • The shower needs a full rough-valve replacement — not just a cartridge swap — because a seized or cracked valve body changes the scope significantly

For cost context: HomeAdvisor’s 2026 plumber cost data shows professional service calls commonly ranging from $100 to $250 for the first hour, with hourly rates from $45 to $200 and trip fees from $50 to $300 depending on market and scheduling (HomeAdvisor plumber cost). A one-hour identification-and-cartridge visit will typically land in the $150–$300 range after parts in most U.S. markets — often less than making two wrong-cartridge purchases while the shower is out of service.


What’s Next

Once you’ve confirmed your Moen cartridge family, the repair itself is straightforward:

  • Posi-Temp (1222): You’ll need Moen’s 1222 cartridge and Moen’s cartridge puller tool — Moen recommends the puller because the 1222 seats tightly and is difficult to extract by hand. Follow Moen’s 1222 instruction sheet for hot/cold orientation and temperature-limit setting.
  • One-handle (1225): See our step-by-step guide on how to replace a Moen 1225 cartridge — the procedure covers removal, retaining-clip handling, and the hot/cold check before you close the wall.
  • M-CORE (1212 or 1213): Moen’s M-Core valve guide gives the 1212 for the 2 Series and the 1213 for the 3 Series; follow Moen’s installation documentation for your cartridge, such as the 1213 product page. Do not substitute a 1222 or 1225.
  • Other brands in the cluster: For the same identification workflow applied to other shower brands, see our guides on Delta, Symmons, Grohe, and Gerber shower valves.

You can also use our free Repair Finder to confirm the exact replacement cartridge part number — paste in the model number or answer a few questions and the tool maps it to the right Moen part number before you buy.


How do I know if I have a Moen Posi-Temp shower valve?

Try pulling the handle straight out from the wall. A Posi-Temp handle does not pull out — it only rotates from cold to hot. If the handle stays flush and only turns, that is a Posi-Temp valve and it takes the 1222 cartridge. If the handle pulls toward you before rotating, that is likely an older one-handle Moen that uses the 1225 cartridge.

What is the difference between the Moen 1222 and 1225 cartridges?

The 1222 is the Posi-Temp cartridge for rotate-only single-handle showers. The 1225 is the cartridge for older one-handle Moen shower valves that allow a pull-out motion. The two cartridges have different stem profiles — they are not interchangeable and will not fit each other’s valve bodies.

My Moen shower is more than 15 years old — can I still find a replacement cartridge?

Yes. Moen’s lifetime limited warranty on cartridges means genuine replacement cartridges are available for older valve families. The 1222 and 1225 have been in production for decades. If a model-number search on moen.com returns no results, call 1-800-BUY-MOEN with photos of the valve and cartridge.

What Moen cartridge does an M-CORE shower use?

The Moen M-CORE valve system uses one of two cartridges: Moen’s M-Core valve guide gives the 1212 for the 2 Series, whose handle rotates only, and the 1213 for the 3 Series, whose handle also tilts up and down to adjust the volume, so check the series before you order.

Can I use an aftermarket Moen 1222 or 1225 cartridge?

Aftermarket options exist, but Moen sells genuine Moen replacement parts, matched to each product through its page’s list of replacement parts. Homeowner reports from other brands suggest aftermarket cartridges sometimes fail to seat properly where OEM parts fit correctly. If you choose aftermarket, confirm the stem profile matches your removed cartridge exactly before installing.

What if I have a Moen shower with two separate controls — one for volume and one for temperature?

A Moen shower with separate volume and temperature controls is typically a thermostatic or digital system (ExactTemp, U by Moen) — not a single-cartridge Posi-Temp or one-handle configuration. These systems use cartridge families tied to both the controller model and valve model. Check the installation documentation or call Moen support at 1-800-BUY-MOEN with both model numbers.
