How to Identify Your Kohler Shower Valve: Rite-Temp, MasterShower, and Cartridge Family [2026]

Knowing how to identify your Kohler shower valve before you order any part is the single most useful step in a Kohler shower repair — because Kohler doesn’t sell a simple, universal cartridge the way some other brands do. Kohler organizes its shower line into visible trim and a separate, hidden valve body, and the valve body and cartridge are usually sold together as one kit (Kohler shower valves and trim). Order the wrong kit and you’ve bought an entire valve body you didn’t need, or missed the one you did.

The identification breaks into two questions: what does the trim tell you, and what does the valve behind it actually need. This guide walks through the model-number trail, the visible trim style, Kohler’s own lookup tools, and — as a last resort — removing the trim to read the valve body directly.

Trim style	What it looks like	Likely valve family	Kit example
Single plain lever	One handle, no button or extra knob	Rite-Temp pressure-balance	K-8304-USPF-NA
Lever with push-button diverter	One handle plus a button on the trim	Rite-Temp with diverter	Rite-Temp diverter trim (e.g., K-T14501-4-CP)
Lever plus separate volume knob	Two distinct controls: temperature and volume	MasterShower thermostatic	K-2973-KS-NA
Two handles in the wall	Two separate handles, ceramic-style	Two-handle in-wall valve	K-302-K-NA
Digital touchscreen or button panel	Electronic interface, no traditional handle	Anthem / DTV-style digital	Paired controller + valve model

This guide covers four identification methods in order from easiest (no tools, no water shutoff) to last resort (trim removed, valve body inspected). Use the first method that gives you a confirmed model or kit number and stop there.

---

How to Identify Your Kohler Shower Valve: Start With the KOHLER Mark

The first check costs nothing. Look at the handle, escutcheon plate, showerhead, and tub spout for a visible KOHLER wordmark. Kohler puts its name on finished trim surfaces, and a legible mark on any of those surfaces confirms the trim is Kohler (Kohler shower valves and trim).

The mark confirms the trim brand — it does not confirm the hidden valve body. Kohler explicitly separates “shower valves” from “trim” as distinct product categories: the valve regulates water flow and temperature behind the wall, while trim is the visible hardware you touch (Kohler shower valves and trim). A Kohler-branded escutcheon does not by itself prove which rough-in valve is installed behind it, because Kohler sells trim and valve bodies as separate purchase decisions.

If no mark is visible — worn finish, painted-over trim, builder-grade installation — the valve could still be Kohler. Move to the model-number trail before assuming a different brand.

---

Method 1: Find the Model Number on Packaging, Literature, or the Product Itself

Kohler’s own service-parts workflow starts here. Kohler says a product’s model number may be found on product packaging, literature, specification sheets, or stamped on the product itself, and it recommends identifying the product before pulling up a parts diagram (Kohler service parts).

Check these places in order:

Old packaging, manuals, and spec sheets. If the shower was recently installed or the homeowner kept the original box, instruction sheet, or a builder’s fixture-selection sheet, the model number is likely printed there. This matters more for Kohler than for some brands, because visible trim can be swapped during a remodel while the original rough-in valve stays in the wall — an old spec sheet may identify the valve better than a newer handle does.

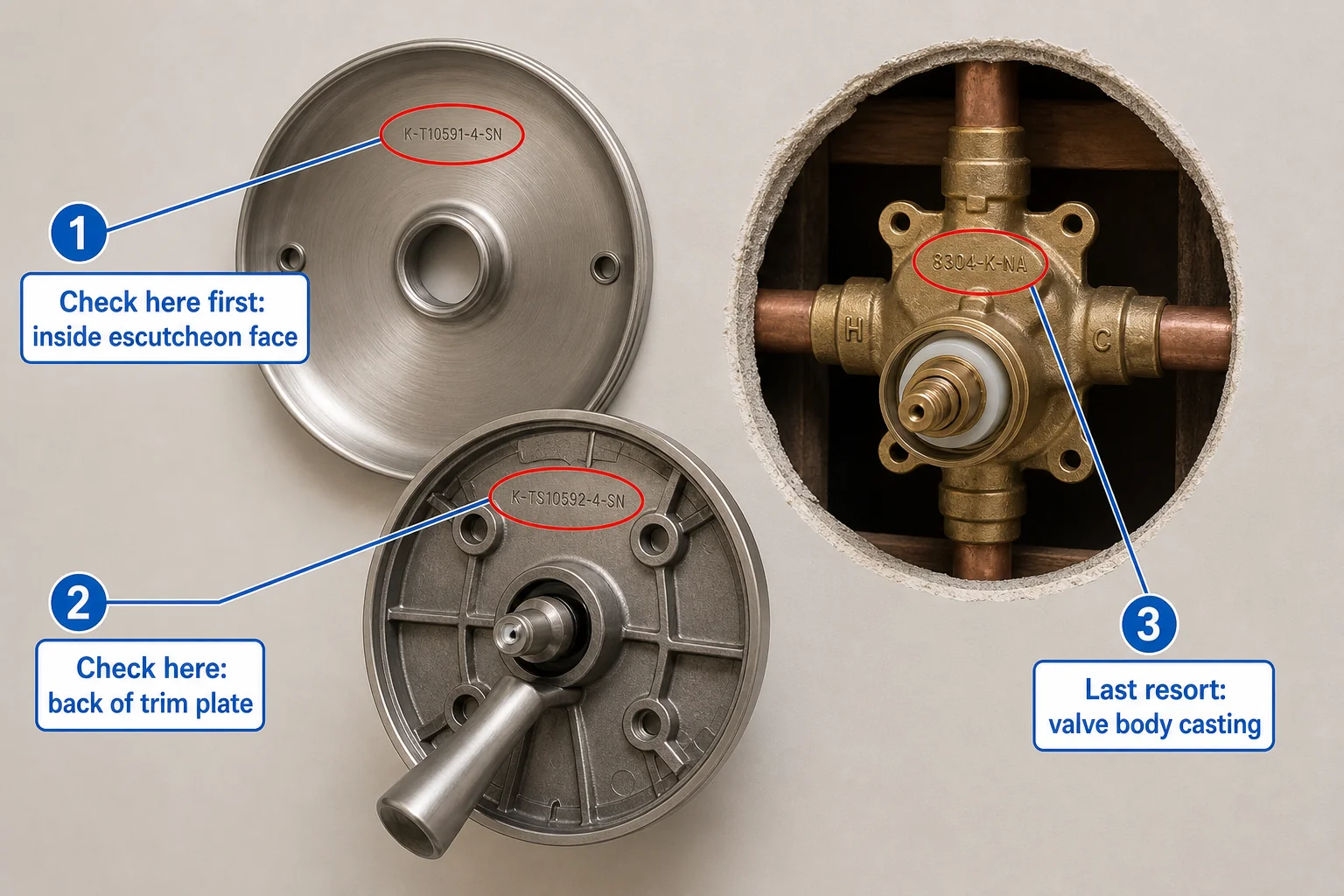

The inside face of the escutcheon or trim plate. Kohler notes the model number may be stamped directly on the product (Kohler service parts). Before cleaning or discarding any part during a repair, photograph both sides of the escutcheon, the adapter ring, the handle insert, and the screws — a stamped model number, finish suffix, or part number can be hiding on a surface that’s normally against the wall.

A word on serial numbers. Don’t count on decoding a Kohler serial number the way some manufacturers’ guides suggest for other brands — Kohler’s public support material emphasizes the model number, product photos, and its Scout photo tool far more than serial-number decoding for shower valves (Kohler service parts). Prioritize the model number and a clear photo set instead.

Once you have a model number, Kohler’s workflow is: identify the product, view its parts diagram, then select the genuine part (Kohler service parts) — covered in Method 3 below.

---

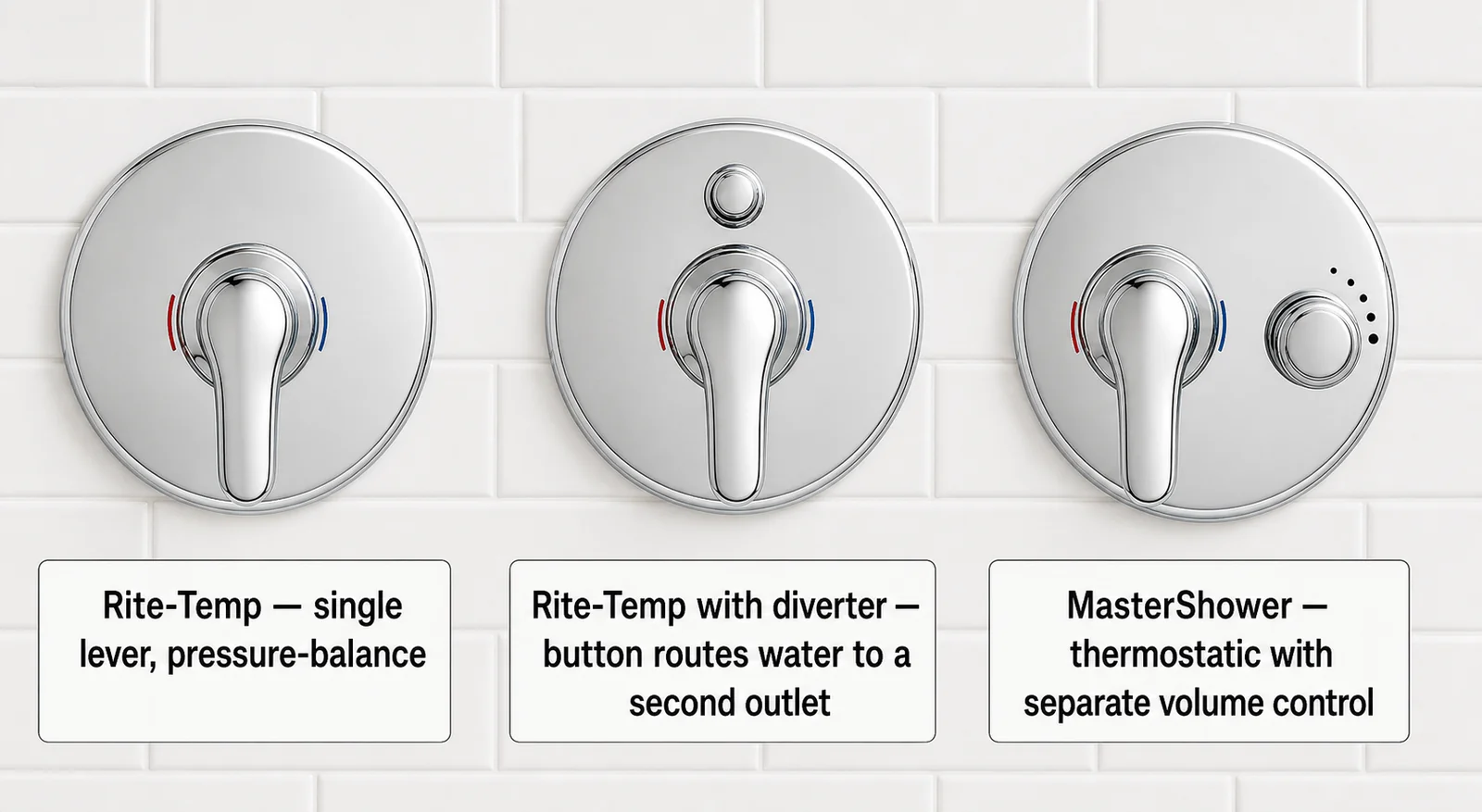

Method 2: Read the Trim Style — Rite-Temp, MasterShower, Two-Handle, or Digital

If there’s no paperwork, the trim’s control layout is the fastest homeowner-level clue to the valve family behind it. Kohler’s current shower-valve catalog groups products into a handful of distinct types, and the control layout on the trim maps directly to one of them (Kohler shower valves and trim).

A single plain lever, nothing else. This points to a Rite-Temp pressure-balancing configuration — Kohler’s standard single-control shower valve. An example kit is the Rite-Temp pressure-balancing valve body and cartridge kit, K-8304-USPF-NA (Kohler K-8304-USPF).

A lever plus a push-button diverter. A button on the trim that routes water between a showerhead and a second outlet (a handheld or tub spout) points to a Rite-Temp trim built with a diverter, such as the Purist Rite-Temp trim with push-button diverter, K-T14501-4-CP (Kohler shower valves and trim). The plain-lever Purist Rite-Temp trim without a diverter carries its own model, K-TS14423-4-CP (Kohler shower valves and trim) — the presence or absence of the button is the visible difference between the two.

A lever plus a separate volume knob. Two distinct controls — one for temperature, one for water volume — is Kohler’s MasterShower thermostatic architecture. The MasterShower thermostatic valve with integrated volume control and stops is K-2973-KS-NA (Kohler K-2973-KS).

Two separate handles in the wall. This is a two-handle ceramic in-wall valve, a different architecture than any single-lever Rite-Temp or MasterShower configuration. Kohler’s widespread two-handle ceramic in-wall valve system with 8” centers is K-302-K-NA (Kohler K-302-K).

A digital touchscreen or button interface with no traditional handle. This is Kohler’s digital Anthem or DTV-style architecture. Identification depends on both the controller model and the valve model, similar to how other manufacturers’ digital shower systems pair a controller number with a separate valve number — read the controller face and any installation paperwork for both.

A separate volume-control knob or push-button diverter is never decorative on Kohler trim — the catalog treats Rite-Temp, Rite-Temp-with-diverter, MasterShower, two-handle, and digital as distinct product families, so the control layout genuinely narrows down which valve is behind the wall (Kohler shower valves and trim).

---

Method 3: Use Kohler’s Lookup Tools — Find Service Parts, Kohler Assist, and Scout

Once you have a model number, or a trim-style hypothesis from Method 2, Kohler’s own tools confirm the correct valve or cartridge kit.

Find a Service Part. Kohler’s official workflow at this page is: identify the product, then view the parts diagram for that product, then select the genuine part (Kohler service parts). Enter the model number you found in Method 1, and the parts diagram will show every serviceable component, including the cartridge or valve kit.

Kohler Assist. Kohler’s support hub offers several relevant paths in one place: “Find a Service Part,” “Find Model Number,” “Installation Guides & Technical Specs,” and “Identify your product with a photo,” alongside chat, email, and phone support (Kohler Assist). Kohler Assist also lists Valves (Shower & Bath) as its own support category, which is worth selecting directly rather than searching generically.

Kohler Scout. If you have a model number but can’t confirm the exact product, or no model number at all, Kohler Scout accepts an uploaded photo and tries to identify the product from it. Kohler notes Scout is currently in beta (Kohler service parts) — treat a Scout match as a strong lead rather than a guaranteed final answer, and confirm the specific kit number against the parts diagram before ordering.

Before ordering anything, confirm your exact replacement part with our free Repair Finder — it takes less than a minute and helps you avoid a second hardware run on a valve/cartridge kit that isn’t cheap to reorder.

Coverage note. If Kohler’s online tools don’t return a match for your model number, Kohler Assist’s phone line, 1-800-456-4537, handles cases the website can’t resolve, including older or discontinued product lines (Kohler Assist).

---

Method 4: Remove the Trim and Inspect the Valve Body or Cartridge

If the model number, trim style, and online tools still haven’t confirmed the valve family, removing the trim to inspect the valve body directly is the last resort. This step requires a water shutoff.

What to check once the trim is off. The escutcheon screw pattern, the cartridge stem or visible cartridge face, and — if the wall is open from the rear — the valve body casting itself can all carry identifying marks. Kohler’s guidance that the model number “may be stamped on the product” applies here: the valve body is the product that matters for a cartridge kit order, and its casting can carry a stamp the trim never showed (Kohler service parts).

Don’t open finished tile just to read a casting mark. An access panel, an unfinished basement ceiling below the shower, or an in-progress remodel can expose the valve body without cutting into finished tile. Absent one of those, a plumber can typically identify the valve from cartridge geometry and trim removal alone (see “When to Call a Plumber” below).

Photograph everything before disassembly. Kohler’s identification process depends on matching what you find to the correct parts diagram. Photograph the installed trim, the escutcheon, the screw pattern, the handle stem after trim removal, the cartridge face and side, and any stamped or molded text on the valve body.

---

How to Identify Your Kohler Shower Valve: Quick Decision Tree

1. Have the original box, instruction sheet, or spec sheet? → Find the model number → Enter it at Kohler’s Find a Service Part page → Confirm the exact kit from the parts diagram. Done.
2. No paperwork, but a KOHLER mark on the trim? → Read the control layout: – Single plain lever = Rite-Temp pressure-balance = a kit like K-8304-USPF-NA – Lever plus push-button diverter = Rite-Temp with diverter trim – Lever plus separate volume knob = MasterShower thermostatic = a kit like K-2973-KS-NA – Two handles in the wall = two-handle ceramic in-wall valve = K-302-K-NA – Digital touchscreen/button panel = Anthem/DTV-style digital system (read both controller and valve model)
3. Have a model number but no confident match? → Use Kohler Scout’s photo-upload tool or contact Kohler Assist at 1-800-456-4537 with photos (Kohler Assist).
4. Still unsure after all of the above? → Remove the trim (after water shutoff), photograph the valve body and cartridge, and confirm against the parts diagram or a plumbing supply counter before buying.
5. Can’t confidently identify the valve by any method? → A short plumber visit for a visual ID is often cheaper than ordering the wrong Kohler valve/cartridge kit, which costs more than a standalone cartridge from most other brands.

If you’re working on a different brand instead, our guides on how to identify your Delta shower valve and how to identify your Moen shower valve use the same method order, adapted to each brand’s own identification logic — Delta by production-era cutoffs and cartridge color, Moen by handle action.

---

What If You Can’t Find the Brand — Moen, Delta, and Pfister

Sometimes the trim mark is worn away, or a past repair mixed trim from one brand onto a valve from another. Here’s the quick cross-brand scan: Moen typically places its model number on the UPC label or instruction sheet rather than the installed trim, with online coverage back to about 2011 and phone support at 1-800-BUY-MOEN for older valves (Moen tub and shower systems). Delta starts its lookup with the model number when known, then falls back to category and issue-type search when it isn’t (Delta find parts and identify product). Pfister routes through Replacement Parts and Case Lookup rather than a photo-ID tool (Pfister replacement parts).

Universal parts caution. Avoid a “universal” shower cartridge or valve kit unless the package or listing explicitly names Kohler compatibility. Trim-only repairs sometimes tolerate a universal kit, but cartridge and pressure-balance repairs must match the valve internals — the rough-in body, cartridge, retaining hardware, and balancing mechanism are brand- and generation-specific, in line with Kohler’s own instruction to identify the product and use its specific parts diagram before selecting a part (Kohler service parts).

When replacement beats identification. If the cartridge is seized, the valve body is damaged, the rough-in valve is obsolete, or the wall is already open for a remodel, replacing the whole valve can be more rational than chasing an exact match for an aging part. Kohler’s current catalog spans pressure-balance, thermostatic, transfer, volume-control, and digital valves, so a full replacement can also move an older shower onto a currently supported valve family (Kohler shower valves and trim).

---

When to Call a Plumber

Call a plumber when identification requires cartridge or valve-body removal and you can’t confirm a safe water shutoff — a stuck cartridge can turn an identification job into an active leak, and the exact kit often can’t be confirmed until the cartridge is out (Kohler service parts).

Call a plumber for multi-outlet or multi-control systems — a shower with a transfer valve, a separate volume control, a thermostatic control, or a digital interface. Kohler’s catalog treats these as distinct categories, so a multi-control Kohler shower has more ways to misidentify the part than a single-lever pressure-balance valve (Kohler shower valves and trim).

Call a plumber when the valve is behind finished tile with no access panel — a plumber can often identify the valve from trim removal and cartridge geometry without opening the wall.

On cost: treat any flat “$75-$150 identification visit” figure as a rough local-market estimate rather than a Kohler-published number, since manufacturer identification pages don’t publish plumber trip charges. According to HomeAdvisor’s 2026 plumber cost guide, professional service calls commonly run $100–$250 for the first hour, with hourly rates from $45–$200 and trip fees from $50–$300 depending on market and scheduling. A short diagnostic visit is often cheaper than ordering a Kohler valve/cartridge kit twice — Kohler’s kits bundle the valve body with the cartridge, so a wrong order costs more than a wrong cartridge would with some other brands.

---

What to Do Next

Once you’ve confirmed your Kohler valve family, the repair itself follows Kohler’s own parts diagram for that specific kit:

• Rite-Temp pressure-balance: Confirm the exact kit (such as K-8304-USPF-NA) against Kohler’s parts diagram at Find a Service Part before ordering.
• MasterShower thermostatic: Confirm against K-2973-KS-NA or the matching thermostatic kit for your trim — MasterShower valves are not interchangeable with Rite-Temp valves.
• Two-handle ceramic in-wall: Confirm against K-302-K-NA or the matching two-handle system for your trim’s center spacing.
• Other brands in the cluster: For the same identification workflow on other shower brands, see our guides on Delta, Moen, Symmons, Grohe, and Gerber shower valves.

For the full shower repair cluster — cost guides, diagnostics, and step-by-step replacement how-tos — visit our Pillar 3 shower repair hub.

You can also use our free Repair Finder to confirm the exact replacement part before you buy — paste in the model number you found, or answer a few questions about the trim, and the tool helps map it to the right kit.

---

Sources

• Kohler Service Parts and Kohler Scout Photo ID
• Kohler Assist Support Hub
• Kohler Shower Valves and Trim Catalog
• Kohler K-8304-USPF Rite-Temp Pressure-Balancing Valve Body and Cartridge Kit
• Kohler K-28304-KS Rite-Temp Thermostatic Valve Body and Cartridge Kit with Service Stops
• Kohler K-2973-KS MasterShower Thermostatic Valve with Integrated Volume Control and Stops
• Kohler K-302-K Two-Handle Ceramic In-Wall Valve System
• Moen Tub and Shower Systems Identification Guide
• Delta Find Parts and Identify Your Product
• Pfister Replacement Parts
• HomeAdvisor 2026 Plumber Cost Data

---

Educational content only. Not a substitute for licensed professional advice. Local plumbing codes vary by jurisdiction. Use of any guidance from this guide is at your own risk.
